Technical specifications
SYSTEM
- Quad-Core Cortex ARM CPU
- Mali400 MP2 GPU
- 2GB RAM
- 8GB FLASH
- Android 8.1 Oreo
POWER
- Input: 5VDC
- Supply input: 100-240VAC, 50/60Hz
- Power usage: <2W (Idle), 7W (Max.)
- Backup battery: Li-Ion 3.7V 3500mAh
- POE (Power Over Ethernet, optional)
- HVAC power (using C wire, optional)
SENSORS
- Noise
- Light
- Humidity
- Temperature
- Motion
- Shock
NETWORK
- Ethernet (built-in)
- Wi-Fi 802.11 b/g/n
- Bluetooth 4.x
- Z-Wave+ (500 series, optional)
- ZigBee HA (optional)
- EnOcean (optional)
- 433 MHz (optional)
- ULE (optional)
- 3G/4G (cloud connection backup, optional)
- DECT
INPUT/OUTPUT

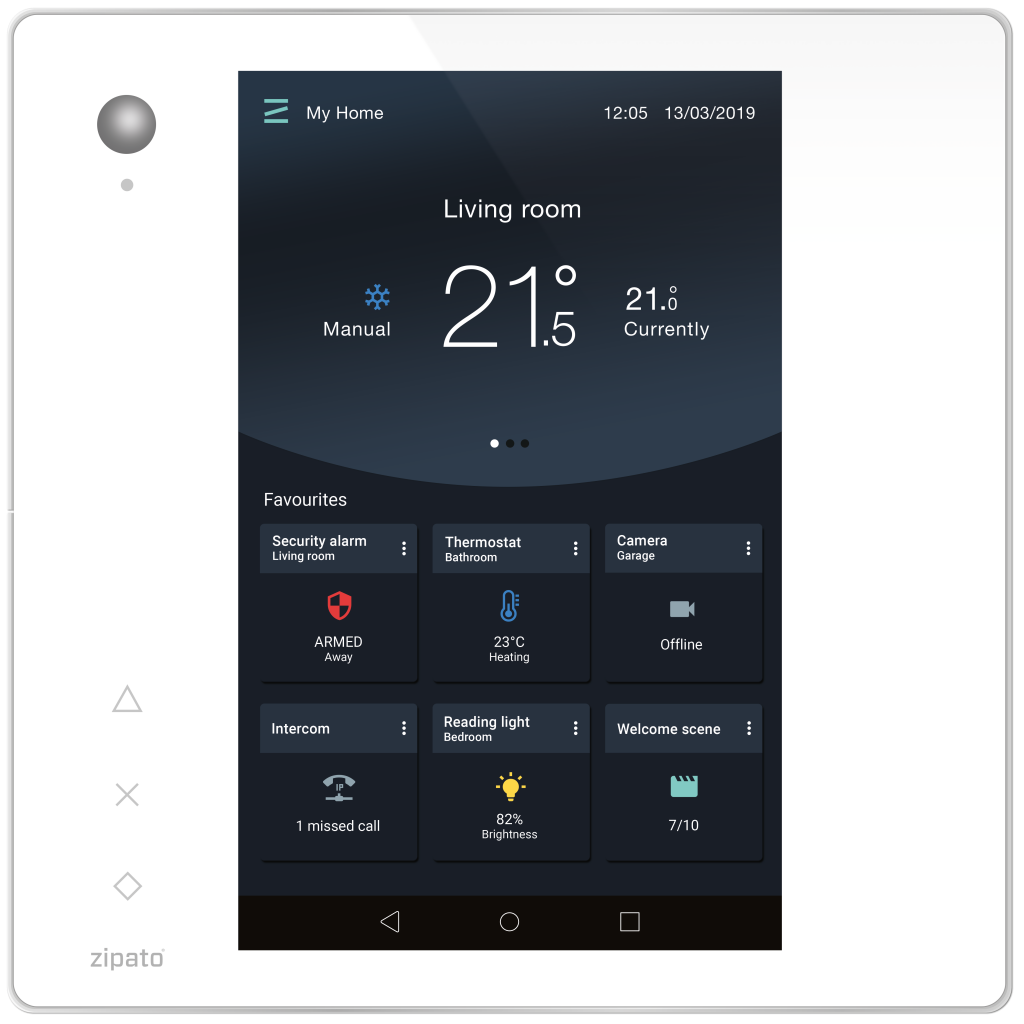

- Touch sensitive 8” screen, 800x1280px
- 3 programmable scene buttons
- 4 dry outputs 230VAC, 1A (60 W max)
- 1 dry input 230VAC
- HVAC interface (support for 2-5 wire
- thermostat installations, HVAC version only)
- RS-485 interface
- Security camera with privacy switch
- Multi-sound alarm siren, 100 dB @ 10cm
- Stereo speakers 2x1W
- Microphone
ACCESSORIES
- In-Wall power supply
- Wall socket adapter
- Wall mounting kit
- VESA mounting kit
PHYSICAL DIMENSION
- 7.9 (W) x 7.9 (H) x 0.6 (D) inches
- 200 (W) x 200 (H) x 15 (D) millimeters
ENVIRONMENTAL
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Storage temperature: -25°C to 70°C (-13°F to 158°F)
- Humidity: 5% to 95% non-condensing
REGULATION
- Safety: UL power supply
- FCC
- CE
- RoHS
